Fiber coupling options offer rugged and compact solutions to couple LaserBoxx into polarization maintaining fiber, standard single mode fiber or multimode fiber.
LPX-561L
DPSS laser – 561 nm
The LPX-561L LaserBoxx are diode-pumped solid-state laser sources.
The unique feature of these models is a proprietary, Alignement-free Monolhitic Resonator (AMR). This technology yields to highly efficient pump schemes and allows for the highest spectral quality on the market.
The LPX-561L is insentive to temperature variations and to mechnical vibrations.
LPX-561L is compatible in the L4Cc Combiner and L6Cc Combiner .
It provides with :
- Integrated control electronics
- SM/PM/MM fiber coupling options
- USB and RS232 interfaces
- Dedicated control software
- External controller with power display (Plug&Play versions, CDRH-compliant)
Product variations
| Reference | Wavelenghts | Power | Options | Quote |
|---|---|---|---|---|
| LPX-561-300 | 561 nm | 300 mW |
|
Options

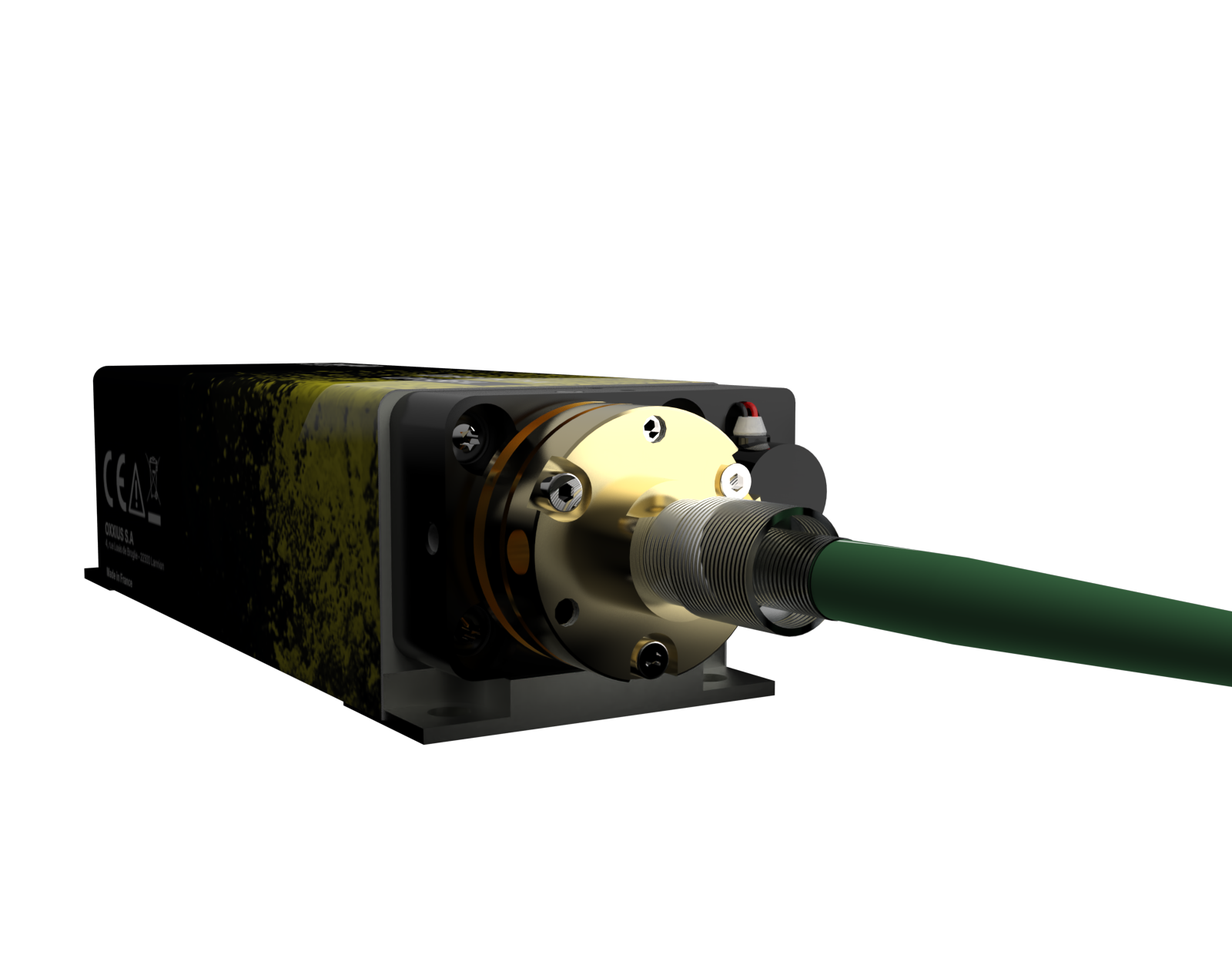

Fiber coupling
Electro-Mechanical shutter

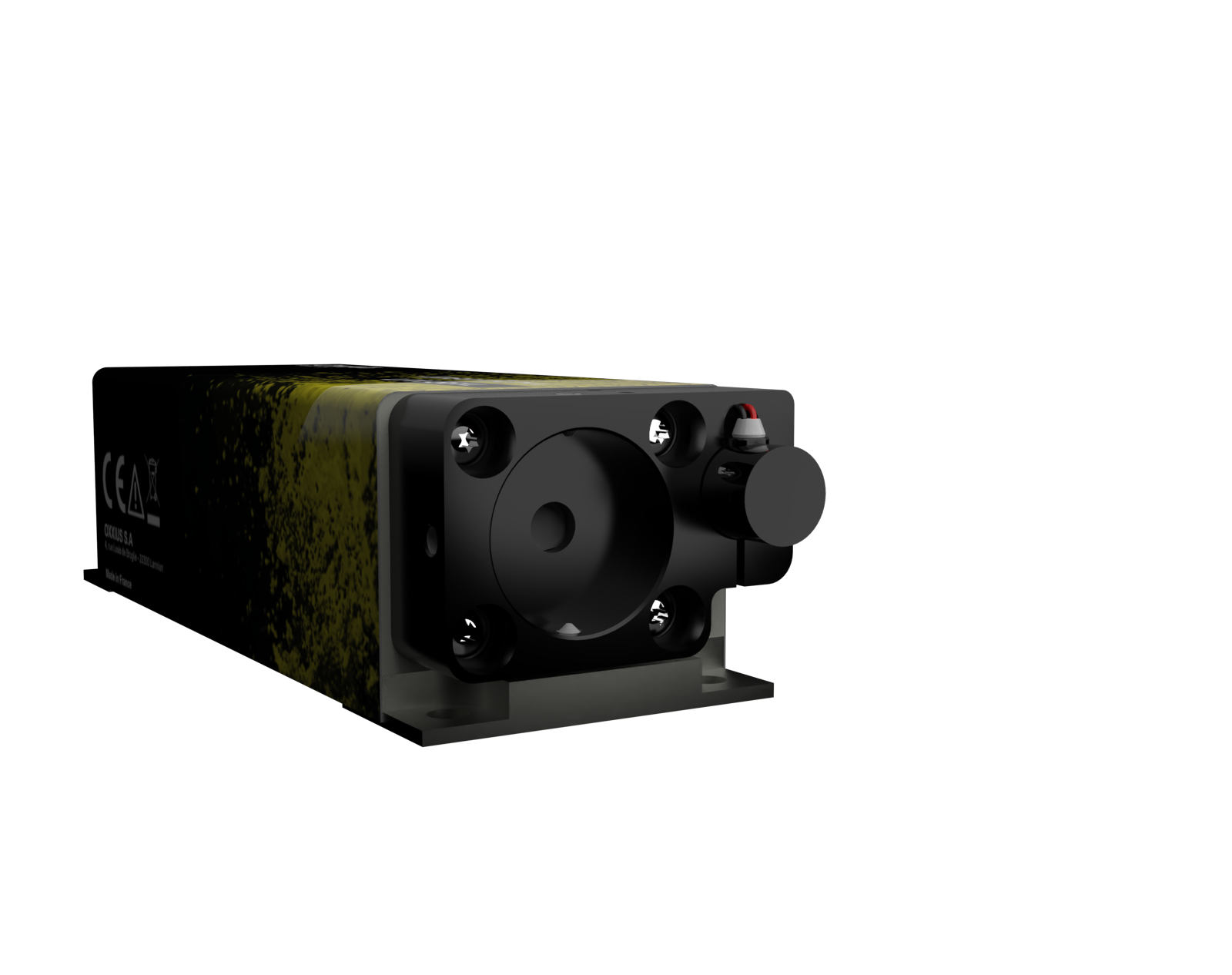

The ACX-SHTE is a compact and affordable electro-mechanical shutter. It is mounted directly on the LCX or LPX in place of the standard manual shutter.
The fiber coupling and other options are fully compatible with the electro mechnical shutter.
The ACX-SHTE is actuated via the LCX or LPX embedded software or via a standard TTL signal.

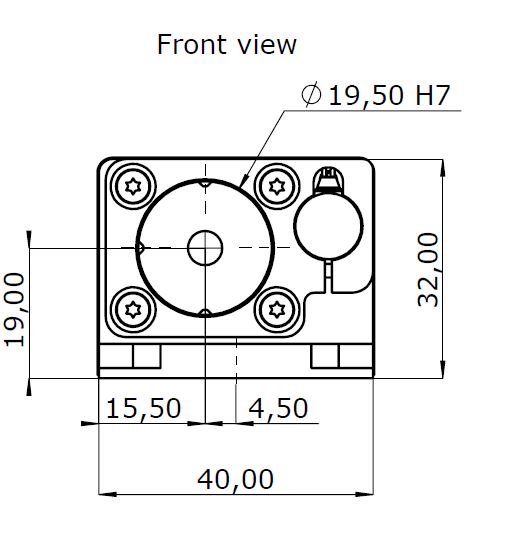

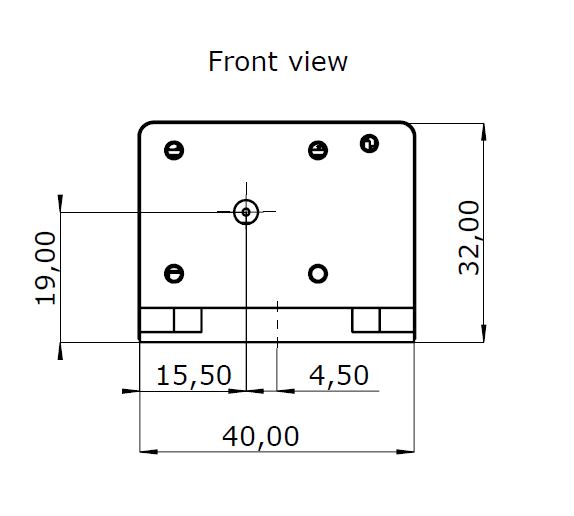

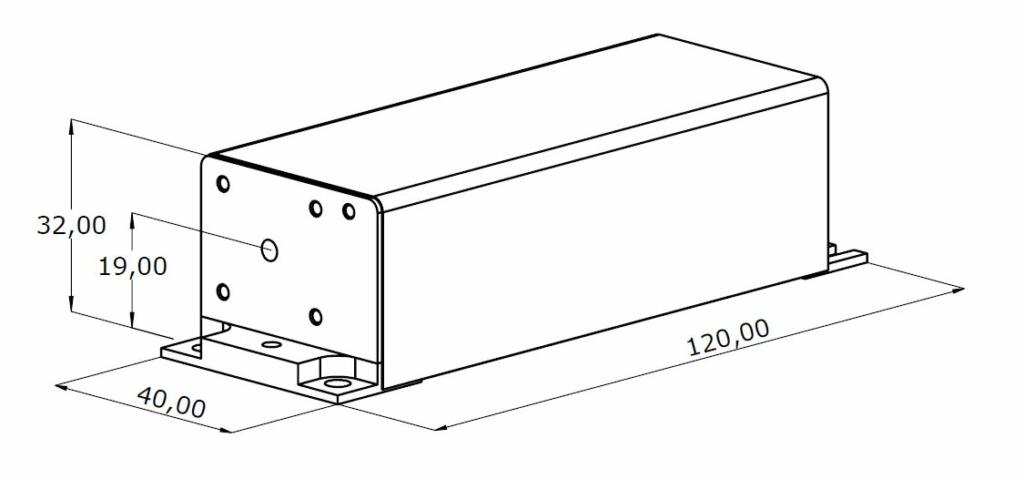

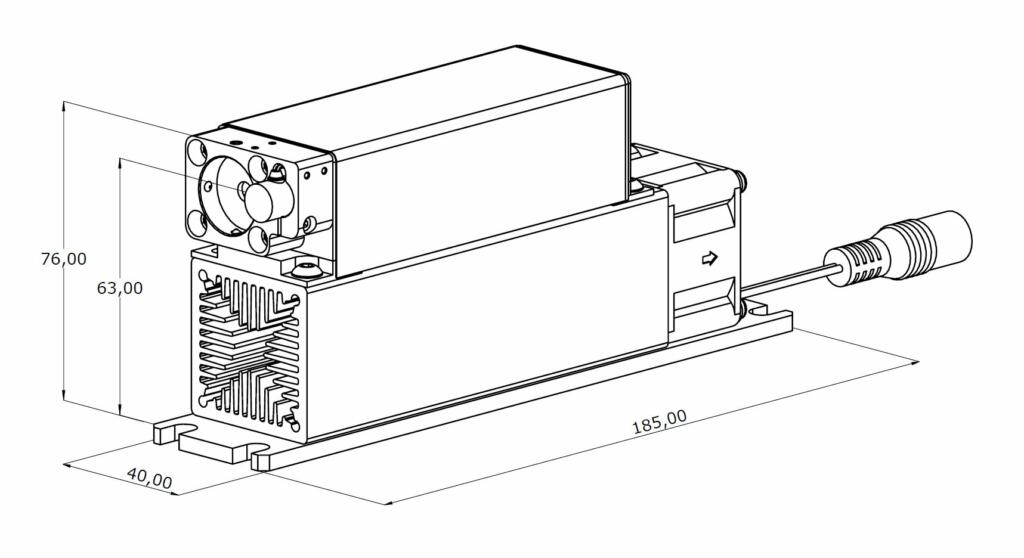

Drawings
